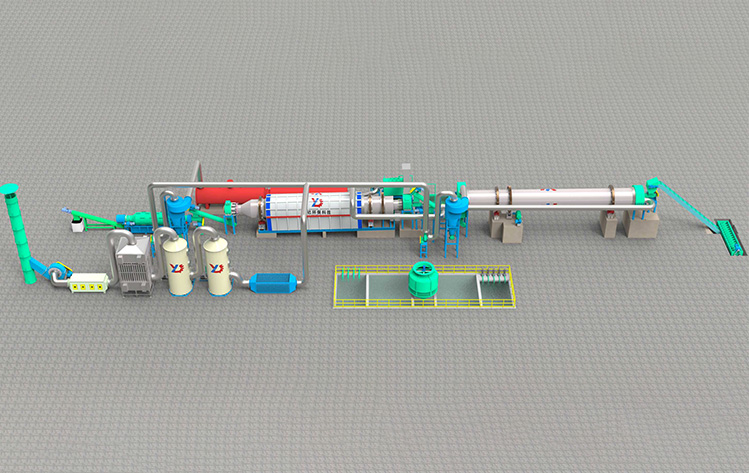

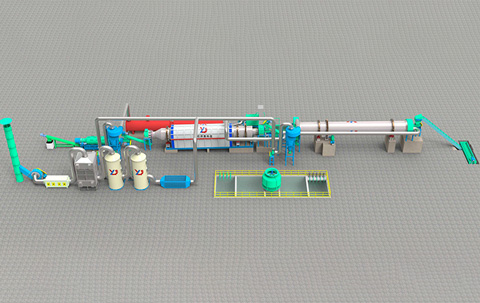

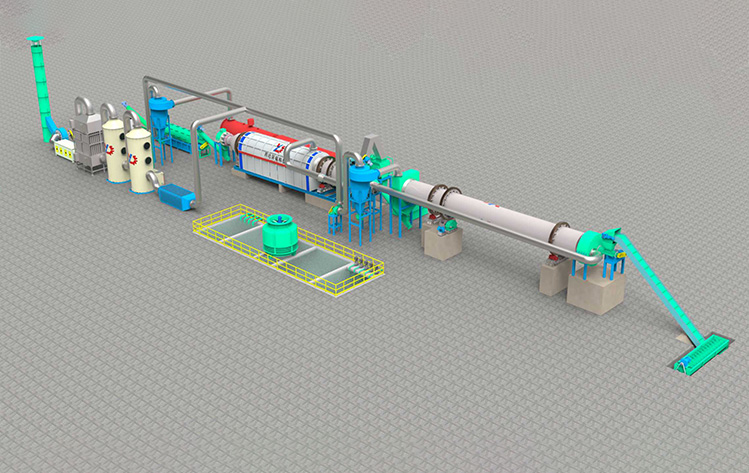

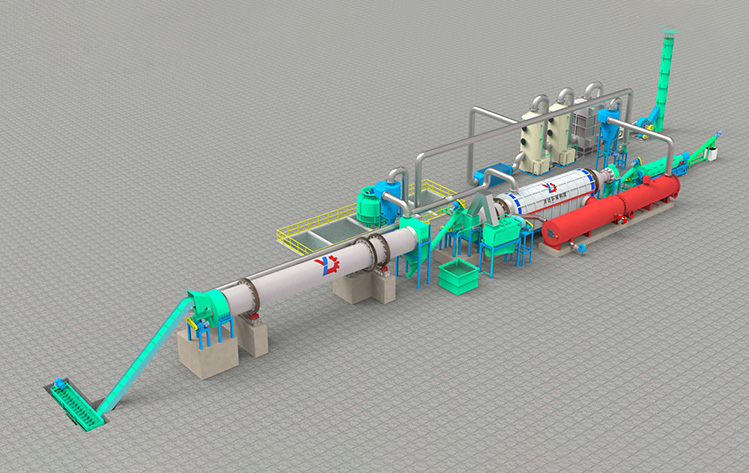

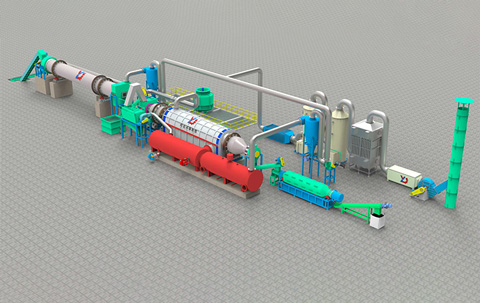

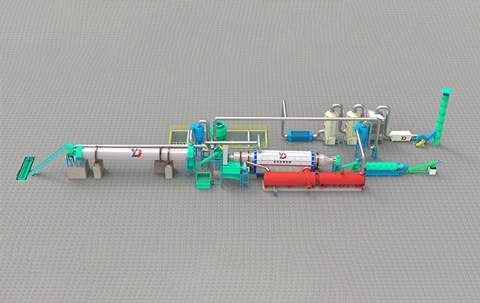

Fully continuous carbonization equipment
The continuous biomass carbonization equipment features wide raw material adaptability. It can efficiently process various biomass materials such as crop straw, rice husk, timber, bamboo, wood chips, coconut shell, corn cob, hemp stalk, palm kernel shell, sawdust and olive shell.
The continuous biomass carbonization equipment features wide raw material adaptability. It can efficiently process various biomass materials such as crop straw, rice husk, timber, bamboo, wood chips, coconut shell, corn cob, hemp stalk, palm kernel shell, sawdust and olive shell.
During carbonization operation, the equipment simultaneously produces high-value products including solid charcoal, combustible gas, wood vinegar liquid and tar, realizing diversified resource utilization of biomass resources.
Equipment Features
-
Continuous Carbonization & High Production Efficiency
The continuous carbonization equipment enables simultaneous feeding and charcoal discharging without shutdown and cooling. It supports 24-hour non-stop operation and can run continuously for 7–10 days, greatly improving overall production efficiency.
-
Self-produced Gas for Energy Saving & Consumption Reduction
External fuel is only required for initial startup. After stable operation, self-generated combustible gas is recycled as the heat source, requiring almost no additional fuel and effectively cutting energy costs.
-
Indirect Heating, Long Service Life & Easy Control
The continuous biomass carbonization furnace adopts thermal radiation heating from a single hot blast stove. The indirect heating method causes less damage to the furnace body for a longer service life. Temperature adjustment can be realized through only one heating point with simple operation.
-
Environmental Treatment & Standard Emission
The environmentally friendly biomass carbonization furnace is equipped with a professional flue gas treatment system. Flue gas generated during combustion and drying is purified to meet national emission standards with no environmental compliance risks.
-
Automatic Operation & Labor Saving
The continuous carbonization furnace supports fully automatic continuous production. Equipped with a PLC control system, it realizes unmanned full-process operation. Operators are only responsible for feeding, finished product collection and equipment monitoring; only 1–2 workers per shift are needed for normal production.
|
Item |
Details |
|
Applicable Raw Materials |
Rice husk, crop straw, sawdust, wood chips, bark, coconut shell, corn cob, bamboo, palm kernel shell, etc. |
|
Final Products |
Charcoal, wood vinegar liquid, tar, combustible gas |
|
Feeding Requirements |
Particle size: ≤20mm; Moisture content: ≤15% |
|
Equipment Models |
Model DY-T-1Capacity: 1 ton/hDimension: Φ1300mm×14000mmModel DY-T-2Capacity: 2 tons/hDimension: Φ1600mm×14000mmModel DY-T-3Capacity: 3 tons/hDimension: Φ1800mm×14000mm |
|
Feeding Mode |
Continuous feeding |
|
Heating Type |
Indirect heating |
|
Heating Fuel |
Fuel oil, gas |
|
Floor Dimension |
38m × 10m × 8m |
|
Labor Requirement |
1–2 workers per shift |
