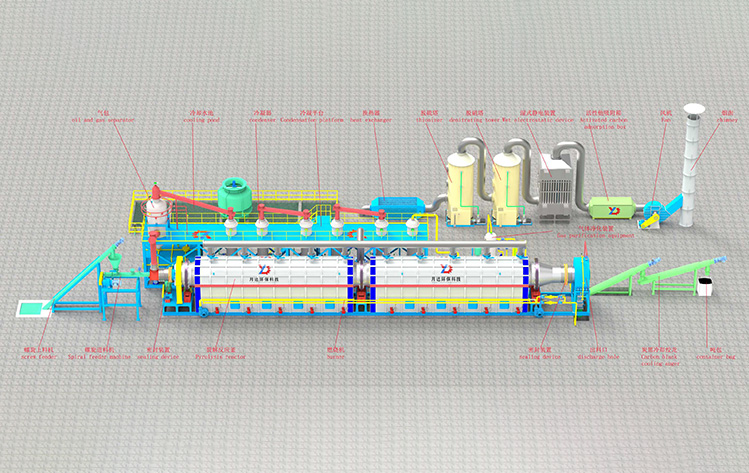

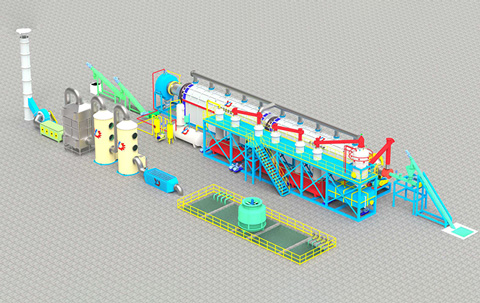

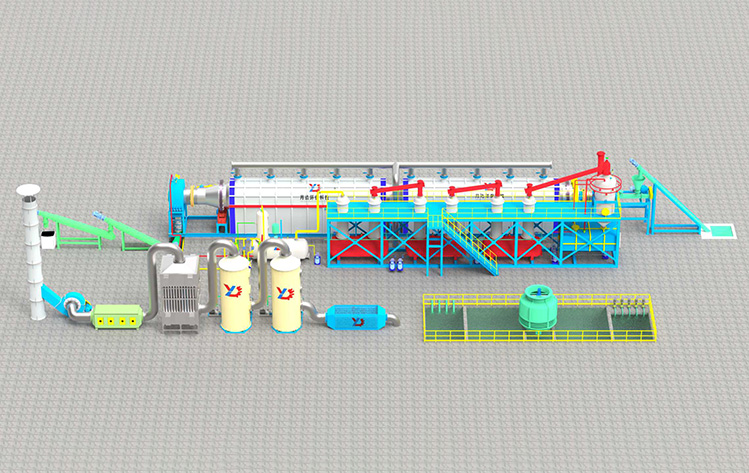

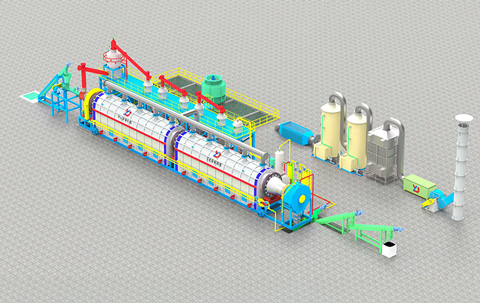

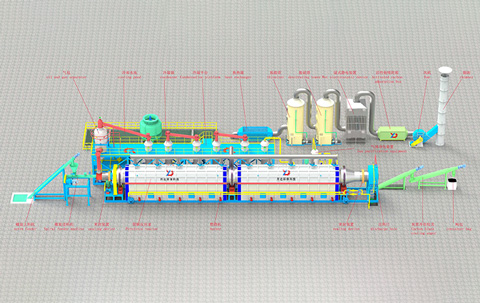

Standard configuration of fully continuous pyrolysis equipment
The fully continuous refining equipment adopts an uninterrupted continuous production mode and can operate 24 hours a day, delivering significantly higher production efficiency and automation level while maintaining excellent environmental performance, with only a relatively higher initial equipment investment.
The fully continuous refining equipment adopts an uninterrupted continuous production mode and can operate 24 hours a day, delivering significantly higher production efficiency and automation level while maintaining excellent environmental performance, with only a relatively higher initial equipment investment.
The equipment supports continuous feeding, with slag discharge and oil output performed synchronously without shutdown, greatly reducing production downtime.Taking the fully continuous waste tire refining equipment as an example, the daily processing capacity of a single unit reaches about 35 tons, compatible with various raw materials such as waste tires, waste plastics and oil-bearing sludge.Waste tires need pretreatment: crushed and ground to particle size of about 5 mm to ensure efficient subsequent pyrolysis reaction.
Equipment Features
-
Transmission Design
External gear ring transmission ensures stable operation and low noise.
-
Unique Heating & Insulation Shell
Excellent heat preservation performance and remarkable energy-saving effect.
-
Long Service Life
Direct heating with large heating area, uniform and fast temperature rise, easy temperature control and simple operation; advanced process effectively extends equipment service life.
-
Energy Saving
Combustible gas is recycled and reused. After purification by the gas treatment system, non-condensable high-calorific gas is delivered to the heating base for combustion, saving fuel consumption and avoiding environmental pollution.
-
High Automation
Fully automatic operation with automatic feeding and automatic slag discharge. It requires fewer labors, easy to operate and realizes continuous production.
-
Eco-friendlier
Horizontal rotary environmentally friendly structure with fully enclosed production process, zero pollution emission.
-
High Safety
Micro-negative pressure operation with good sealing performance, no fugitive emission and hidden safety hazards.
-
Continuous Production
Specially treated pyrolysis reactor prevents material adhesion on the furnace wall. It realizes continuous feeding, continuous oil output and continuous slag discharge without intermediate cooling, reducing heat loss.
-
Wide Raw Material Adaptability
Suitable for oil sludge, oil sand, waste plastics, medical waste, paint residue, rubber powder, domestic garbage and other solid wastes.
-
PLC Control Available
Centralized PLC control saves labor cost and further improves automation level.
|
No. |
Item |
YD-10-P |
YD-30-P |
YD-50-P |
|
1 |
Equipment Model |
YD-10-P |
YD-30-P |
YD-50-P |
|
2 |
Raw Material |
Rubber powder |
Rubber powder |
Rubber powder |
|
3 |
Structural Type |
Horizontal rotary |
Horizontal rotary |
Horizontal rotary |
|
4 |
Heating Mode |
Hot blast stove |
Hot blast stove |
Hot blast stove |
|
5 |
Pyrolysis Reactor Dimension |
1200mm×13000mm×14mm |
1800mm×24000mm×16mm |
1800mm×32000mm×18mm |
|
6 |
Daily Processing Capacity |
About 10 T/D |
About 30 T/D |
About 50 T/D |
|
7 |
Oil Yield |
Subject to raw material type |
Subject to raw material type |
Subject to raw material type |
|
8 |
Working Pressure |
Micro-negative pressure |
Micro-negative pressure |
Micro-negative pressure |
|
9 |
Total Power |
70 Kw |
85 Kw |
120 Kw |
|
10 |
Cooling Mode |
Circulating water |
Circulating water |
Circulating water |
|
11 |
Transmission Mode |
External gear ring transmission |
External gear ring transmission |
External gear ring transmission |
|
12 |
Installation Type |
Integrated type |
Integrated type |
Integrated type |
|
13 |
Noise Level |
＜85 dB |
＜85 dB |
＜85 dB |
|
14 |
Operation Mode |
Continuous |
Continuous |
Continuous |
|
15 |
Total Weight (MT) |
70 |
100 |
120 |
